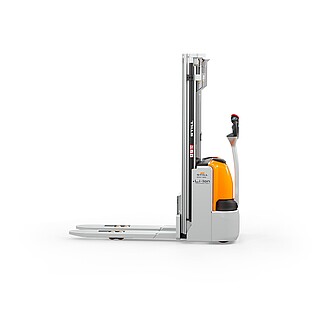

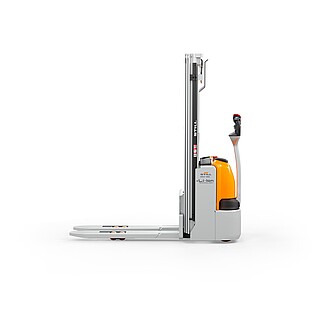

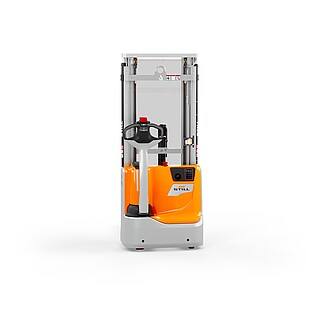

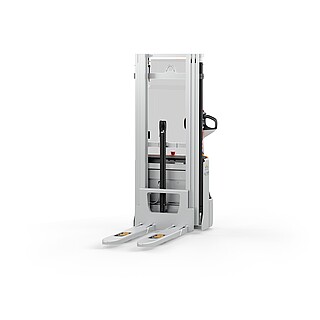

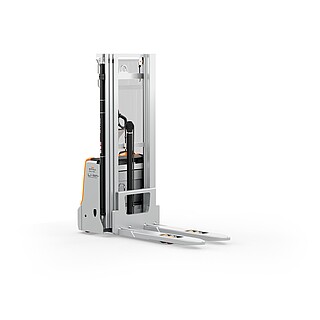

High lift pallet truck EXV 10C-16C
Elevate stacking with ease
- Load capacity 1600 kg
- Rated lift 5466 mm
- Speed 6 km/h
The EXV high lift pallet truck with the unique OptiSpeed tiller is quite something. The speed of this manually guided warehouse assistant is automatically adapted to the distance between the operator and the truck. Note the unique tiller ergonomics: a lot of thought has gone into the positioning of the controls. They allow intuitive one-handed operation for all operators, regardless of hand size and whether left or right. And the LED display on the tiller head allows the operator to keep an eye on all relevant truck information. As if that weren't enough, the truck's stability on slopes and its ability to stop automatically when the tiller arm is released are particularly impressive. Sophisticated lowering damping, which gently slows the lowering speed just before ground contact, protects goods during storage. With the EXV, goods can be stored more tightly than ever before and retrieved more easily. With its high residual load capacity and exceptional manoeuvrability, this compact truck is unbeatable when it comes to moving large quantities of goods quickly and safely in confined spaces with a manual truck, whether in the pre-storage area or on shelving.
Zatražite EXV 10C-16C
Popunite formular. Javit ćemo Vam se u najkraćem mogućem roku.
The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency
Simply easy
Flexible, intuitive operation of all control elements on the tiller head
with one hand, without the need to change grip, naturally for both left- and right-handed operators
Reliable availability
thanks to large colour display with battery status display
Optimal ergonomics and reduced physical strain for the operator
thanks to electric driving, lifting and lowering functions
Clear view through the mast to the fork tips
facilitates hassle-free pallet handling
Unbeatable handling performance:
powerful motor, high residual load capacity and responsive control elements
Simply powerful
Power meets safety:
the four-wheel chassis ensures outstanding stability and effective performance
Reliable excellent performance
thanks to the powerful yet low- maintenance AC motor
New level of precision and safety for user and load
thanks to the responsive proportional valve control
Optimal availability, low-maintenance and high performance
thanks to the optional lithium-ion technology
Smooth and precise electrical steering
Simply safe
Maximum driver safety
thanks to the low-entry truck frame and load backrests
Initial lift ensures stable and low-vibration driving performance,
even if there are slight gradients or unevenness in the floor
Safety for man and machine:
OptiSpeed tiller and automatic stop mechanism when the tiller is released
Safe manoeuvring even in restricted space
thanks to creep speed mode
Information on the lift height at a glance
– on the coloured load capacity display
Estimate the load correctly:
Dynamic Load Control can be used to estimate the load and the corresponding maximum lift height
Simply flexible
Precision even in confined spaces
thanks to compact dimensions
Well-equipped for a wide range of applications
with different driving programmes
Ready for use at all times:
the battery can be charged and interim charged flexibly from any location without the need for a fixed charging station
Simply connected
Compact information:
all relevant truck information is available at a glance in the STILL neXXt fleet web application.
Innovative STILL FleetManager keeps driver and truck safe:
operator management and shock detection as well as damage and cost minimisation thanks to access protection
Optimisation of the goods flow
thanks to straightforward connection to existing material flow management systems via MMS provision
STILL Li-Ion Technology inside
The perfectly harmonised power system for reducing operating costs and increased truck availability.
More about STILL Li-Ion TechnologyZatražite EXV 10C-16C
Popunite formular. Javit ćemo Vam se u najkraćem mogućem roku.
Model | Maximum capacity (kg) | Maximum lift height (mm) | Travel speed (km/h) | Battery voltage (V) |
---|---|---|---|---|
EXV 10(i)C / Li-Ion | 1.000 | 4.686 | 6.0 | 24 |
EXV 12(i)C / Li-Ion | 1.200 | 4.686 | 6.0 | 24 |
EXV 14(i)C / Li-Ion | 1.400 | 5.466 | 6.0 | 24 |
EXV 16(i)C / Li-Ion | 1.600 | 5.466 | 6.0 | 24 |
